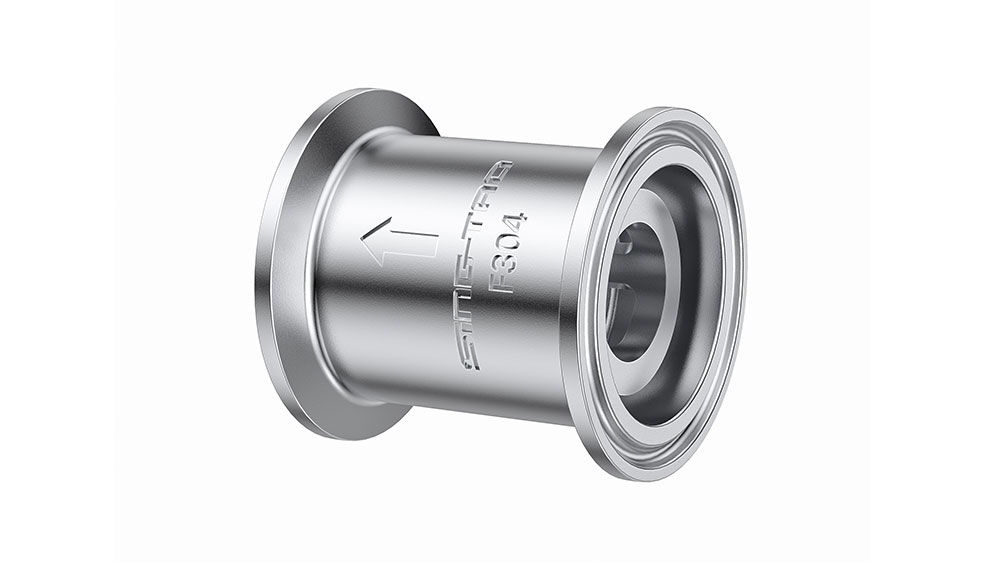

Sanitary Check Valves

● Vertical mounted check valve
● Horizontal mounted check valve
Product Description

Introduction

Sing-Tao® Check Valve is used to controls the flow direction of process liquids or gases. Designed for easy installation and maintenance-free operation, it prevents potential damage to pipelines and equipment, as well as system downtime caused by reverse flow, pressure surges, water hammer, and air entrainment.



Features

● Balance the pressure in the system by eliminating the vacuum condition, thus protecting the process system from potential damage.

● Ensure equipment safety by preventing backflow and water hammer.

● The whole sanitary structure design, no dead angle, residue.


Technical specification
Dimension range:DN20-DN65(3/4"-2½")
Temperature:-10℃ -130℃
Pressure rating:10bar
Driving mode:Automatic
Body material:304/316L
Interface form:Welding and clamping
Standard:ASME BPE and 3A
