Sanitary Ball Valves

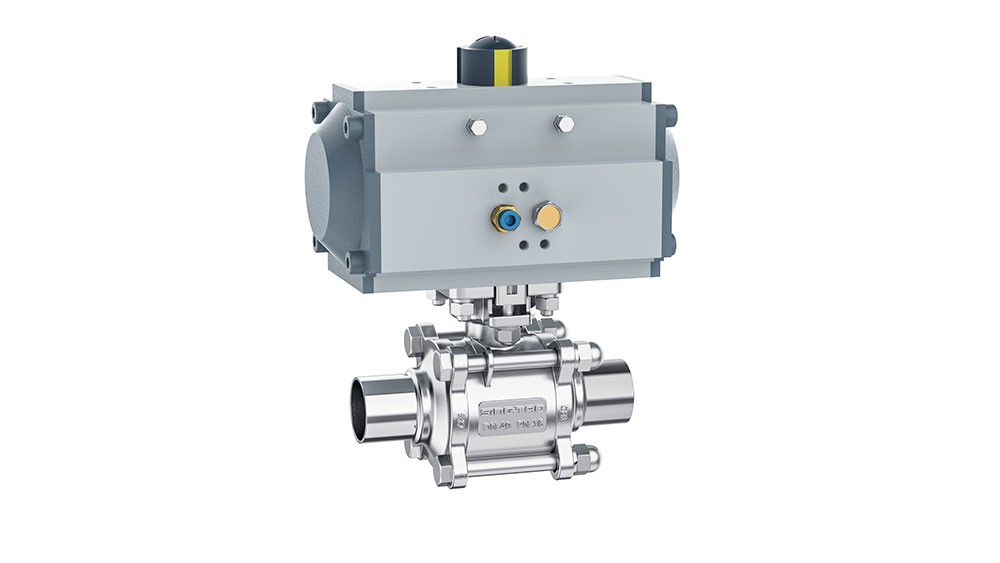

● Pneumatic ball valve

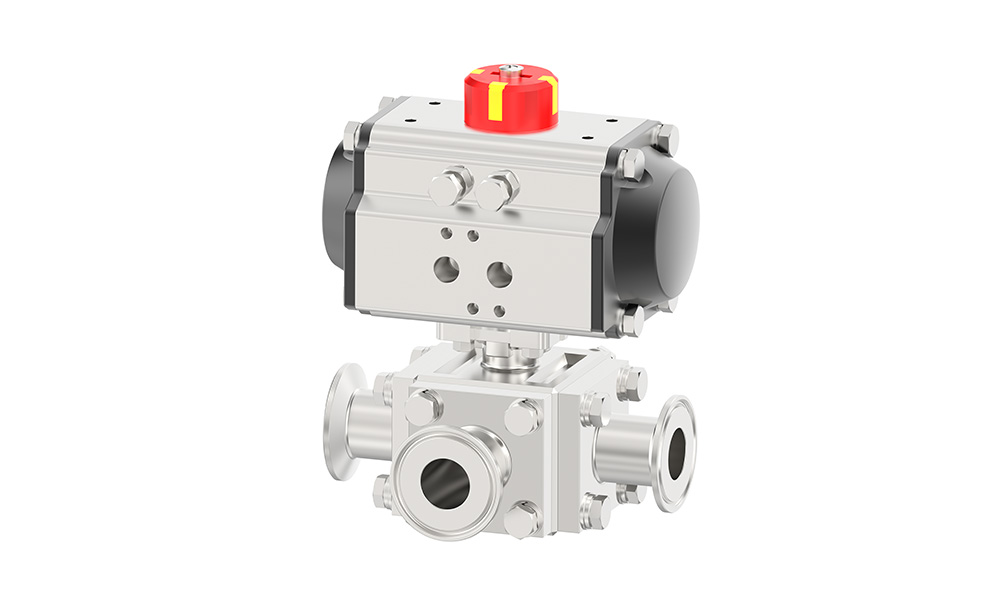

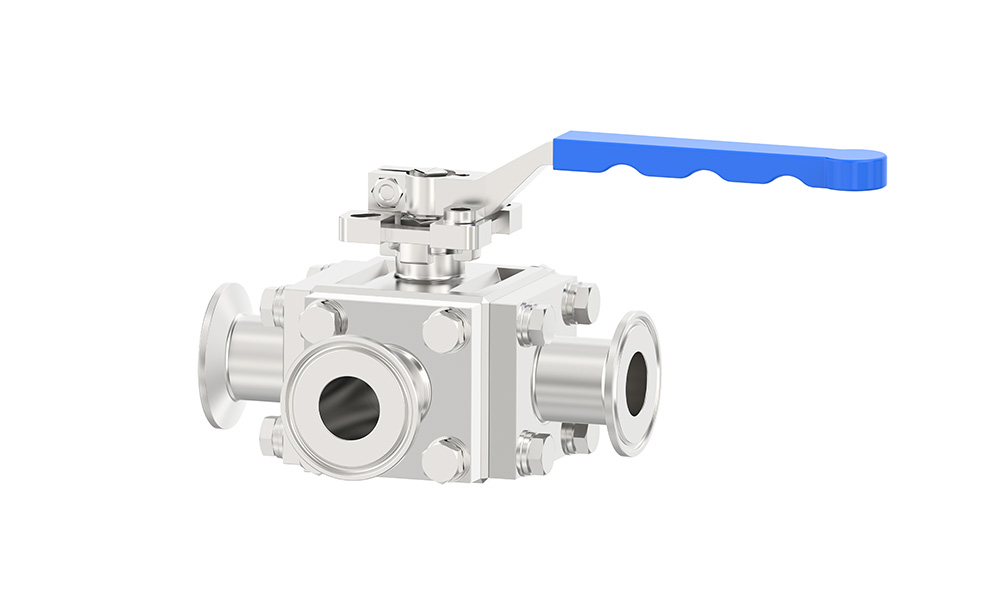

● 3-way ball valve
Introduction
Sing-Tao® Ball Valves are engineered to meet the requirements of process industries, enhancing process safety and efficiency. Our proven expertise in design and materials elevates process reliability in the most demanding shut-off and control applications.
Design Advantages and Features
Sing-Tao® Ball Valves’ core advantage lies in the full-bore, zero-stagnation ball structure design. Achieved through 90° rotation actuation for low-flow-resistance control (drag coefficient ≤0.15), it enables quick-disassembly maintenance to eliminate media retention and microbial growth.
Features
● Designed for high-purity environments in food, pharmaceutical, and bioengineering industries.
● Combines high sealing performance, corrosion resistance, and automation control capability.
● Constructed with 304/316L stainless steel valve bodies.
● Features food-grade EPDM/PTFE sealing components.
● Multiple forms of connection (welding, clamping and customizing).
● Long service life and warranty period.
| Dimension range: | DN15-DN100(1/2"-4") |
| Working temperature: | PTFE -10℃ -150℃ |
| Pressure rating: | 16bar |
| Driving mode: | Manual/pneumatic |
| Automatic control unit: | Feedback device and locator |
| Seat material: | PTFE/TFM |
| Seat structure: | Full-covered/half-covered |
| Body material: | 304/316L |
| Interface form: | Welding and Clamping |
| Standard: | ASME BPE and 3A |
