T-shaped Diaphragm Values
● T-shaped diaphragm valve+back diaphragm valve sampling
● T-shaped diaphragm valve+plunger valve sampling
● Multi-channel valve
Categories:
Aseptic Diaphragm Valves
- Product Description
- Features
- Technical specification
-
Introduction
In the application of high clean ingredients ordispensing solutions, the retention area should becontrolled to the maximum extent, and the zero dead corner T-type diaphragm valve is the best choice.Thebiggest feature of this valve is that it is made of awhole piece of stainless steel, with a compactstructure, greatly reducing dead corners for samplingor water collection.
-
Features
● Multi-Path Control: The T-body design enables three-way or multi-way flow path switching, eliminating the need for additional valves and simplifying pipeline systems.
● Online Sampling: An integrated sampling port (typically on the valve body’s side or top) allows direct in-process sampling and testing, avoiding downtime or contamination risks.
● Zero Dead Leg Design: Smooth flow paths with cavity-free construction comply with EHEDG, FDA, and other standards, supporting CIP/SIP cleaning.
Diaphragm Isolation Technology: The medium contacts only the diaphragm and valve body, with no exposed metal components, preventing cross-contamination.● Modular Design: Expandable to four-way, five-way, or other multi-channel configurations to adapt to complex processes (e.g., multi-tank switching, multi-media mixing).
● Reduced Valve Quantity: Multi-channel designs replace multiple single-valve setups, lowering procurement and maintenance costs.
Dual-Seal Mechanism: Combines diaphragm compression sealing and valve seat sealing to ensure leak-free performance, suitable for high-purity media or vacuum systems. -

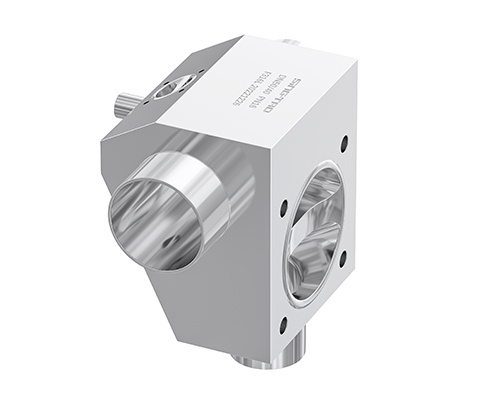

T-shaped diaphragm valve+back diaphragm valve sampling
We do not recommend that when the T-type diaphragm valve combines sampling, by welding the small size two-way diaphragm valve, because this inevitably produces liquid storage.SingTao® Launch the integrated forging T diaphragm valve with diaphragm valve to achieve sampling function, greatly solve the problem of welding two-way diaphragm valve liquid storage, to achieve a real zero liquid storage.

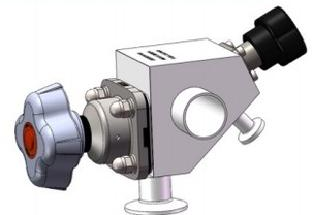

T-shaped diaphragm valve+plunger valve sampling
SingTao® innovatively integrates sanitary sampling valves into T-valves, truly achieving and no liquid storage after sampling, no dead corners, no residue before sampling.

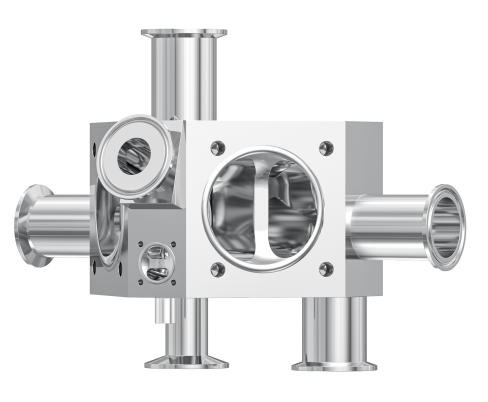

Multi-channel valve
SingTao® multi-channel diaphragm valves are specifically designed for hygienic industries such as food, pharmaceuticals, and bioengineering. Constructed with 316L stainless steel bodies and high-precision polishing, combined with EPDM/PTFE safety diaphragm materials, they meet CIP/SIP requirements. The multi-channel configuration (2-6 channels, T/Y-type layouts) enables precise fluid control through single/multiple inlets and outlets, while the full-bore, dead-end-free flow path prevents media retention. Available with manual, pneumatic, and electric actuation options, these valves feature a clamp quick-release mechanism for rapid maintenance and complete system drainage.
