Two-way Diaphragm Valves
● Pneumatic Diaphragm Valve（stainless steel actuator、plastic actuator）
Categories:
Aseptic Diaphragm Valves
- Product Description
- Features
- Technical specification
- Accessories
- Combined Diaphragm Valve
-
Introduction

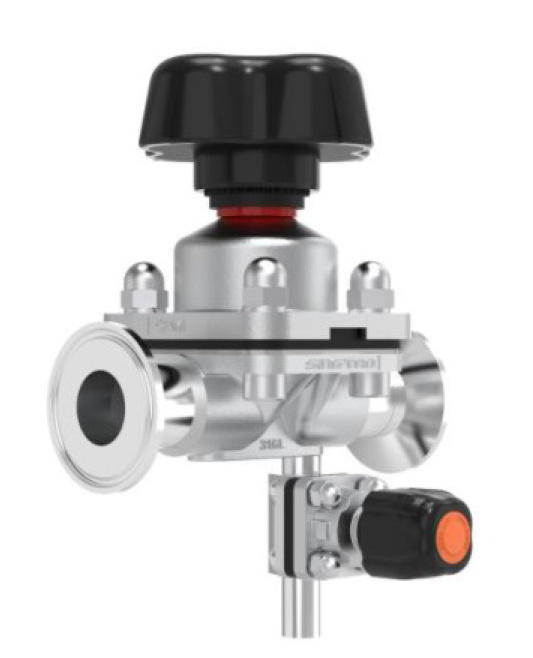

Sing-Tao® Diaphragm Valve is designed to shut off, divert, or regulate fluid flow in hygienic, high-purity, and sterile pipelines. Featuring a compact and lightweight structure, it supports manual or pneumatic actuation with easy configuration to meet virtually any process requirement – including applications with microbial control demands such as food & dairy, biopharmaceutical industries, and other critical hygiene-sensitive operations.
Design Advantages and Features
Sing-Tao® Diaphragm Valves’ core advantage lies in their stagnation-free or dead-leg-free valve body structure, enabling complete self-draining. Compatible with CIP (Clean-in-Place) and SIP (Sterilize-in-Place) processes, they ensure rapid evacuation of residual media to prevent microbial growth and impurity retention. Customizable multi-channel configurations achieve minimal dead legs while maximizing drainage efficiency and cleanability.
-
Features
● Designed for high-purity applications in food & beverage, pharmaceutical, and bioengineering industries.
● Core advantage: The diaphragm completely isolates the medium from actuation components, eliminating contamination risks.
● Medium-wetted materials are non-leaching, non-toxic, high-temperature resistant, and corrosion-resistant.
● Suitable for process pipelines requiring high sanitary standards.

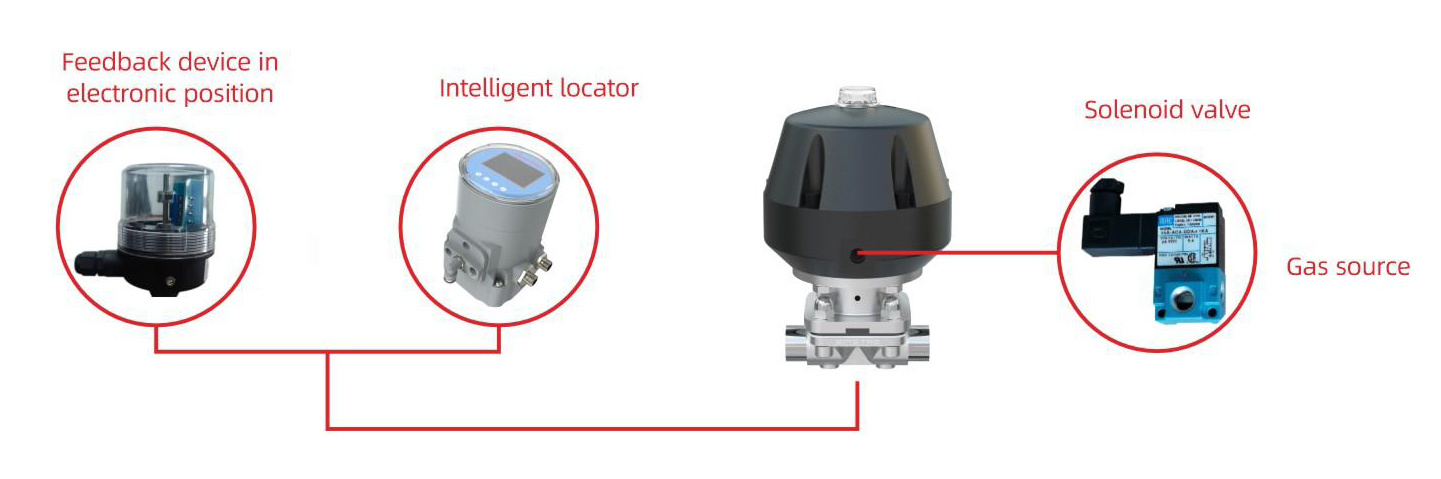

● Compatible with solenoid valves or positioners for precise flow regulation capabilities.
-
Technical specification
-
ST F1 FPos contact type position feedback device
● Operating ambient temperature：-10℃-80℃
● Degree of protection：IP66
● Visual：Green light indicates valve closing, red light indicates valve opening
● Electrical parameters：24V/DC, single circuit current Max: 400mA
● Multi-mode：
1.Three-wire double feedback (light on)
2. Four-wire double feedback (light on)
ST F2 FPos Intelligent Inductive Position Feedback Device
● Visual inspection：Green light on (valve open), yellow light on (valve closed), red light on (fault)
● Switch type：Electronic position sensing
● Connection form：Cable sealing joint
● Features：Easier connection, simple debugging and setting, compared to contact type, more shock-absorbing and shock-absorbing, with low failure rate
-
The combined diaphragm valve is welded together by the valve body of the straight diaphragm valve as required specifically by the customer. The different combination azimuth and angles are adopted to reduce the length of the dead angle pipe on the pipeline, but it shall conform to the requirementsof L/D≤3 in principle.
Combination form

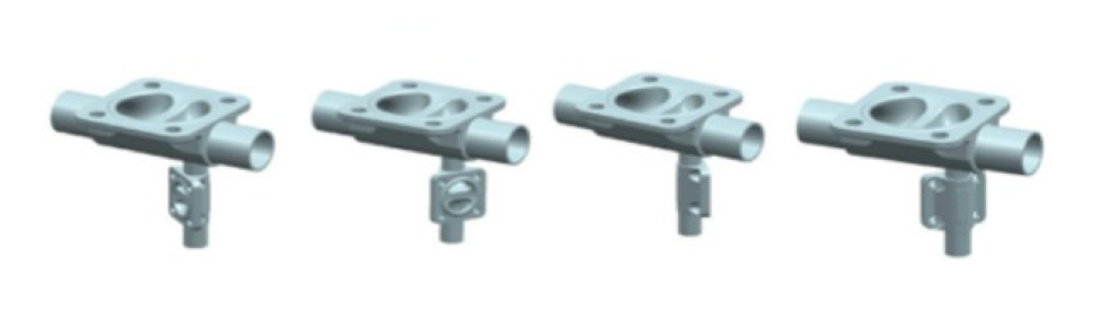

The main valve is installed horizontally and in self-exhaustion,
and the right side of the branch valve is installed vertically

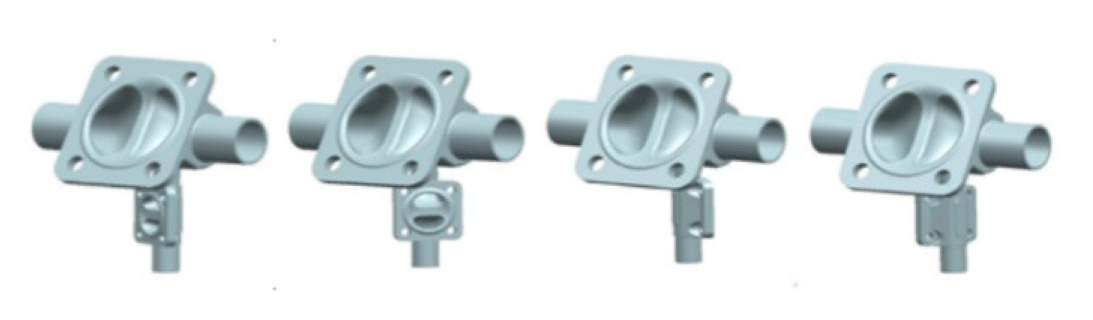

The main valve is installed horizontally and in self-exhaustion, and the left side of the branch valve is installed vertically.

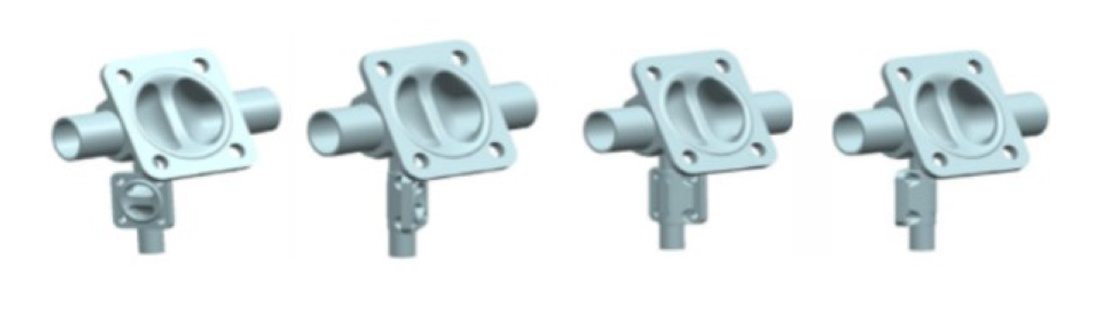

The main valve is installed horizontally and upward, and the right (left) side of the branch valve is installed vertically.

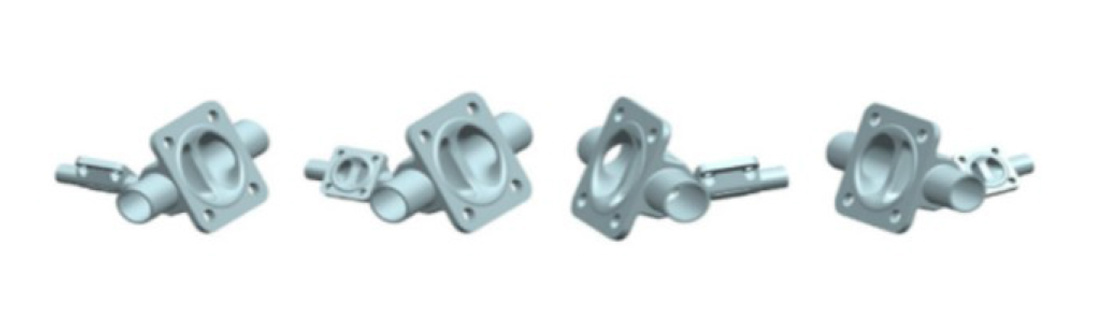

The main valve is installed horizontally and in self-exhaustion, and the left (right) side of the branch valve is installed horizontally and in self-exhaustion.

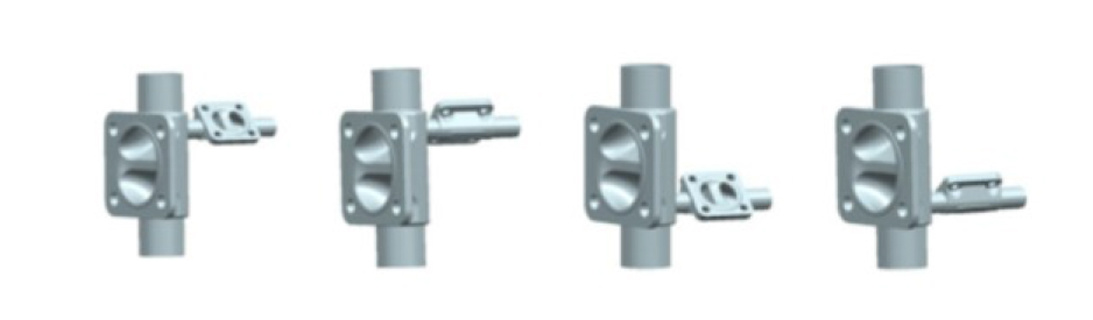

The main valve is installed vertically, and the upper (lower) part of the branch valve is installed horizontally and in self-exhaustion.
Product Inquiry
If you have any questions or needs, please leave a message or contact us and we will reply you as soon as possible.
