Two-way Diaphragm Valves
● Pneumatic Diaphragm Valve（stainless steel actuator、plastic actuator）
Introduction

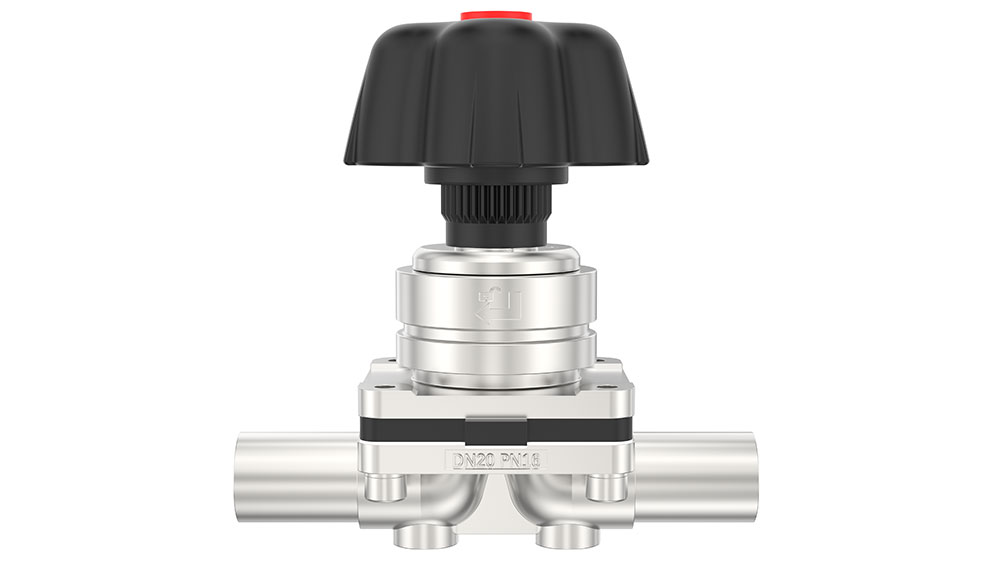

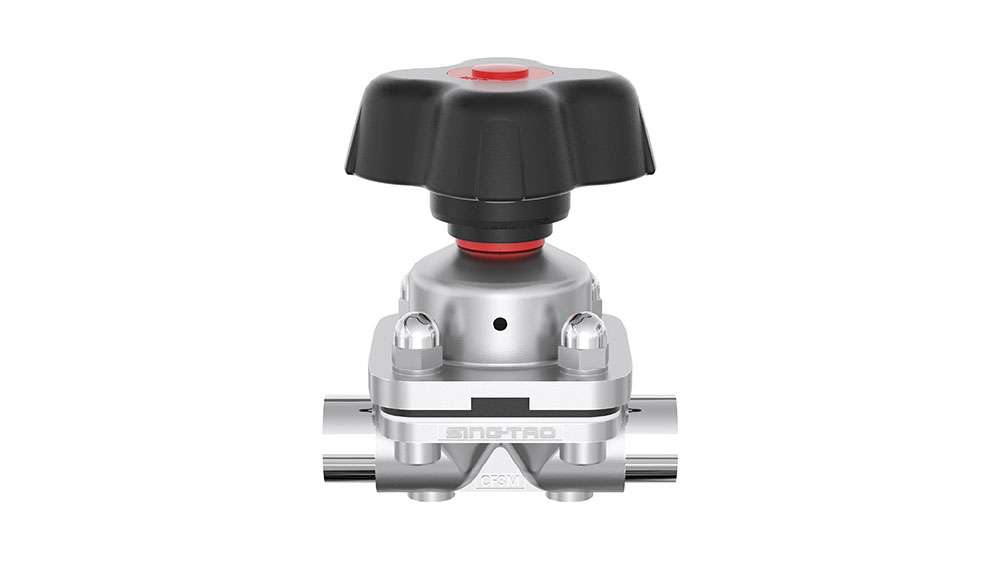

Sing-Tao® Diaphragm Valve is designed to shut off, divert, or regulate fluid flow in hygienic, high-purity, and sterile pipelines. Featuring a compact and lightweight structure, it supports manual or pneumatic actuation with easy configuration to meet virtually any process requirement – including applications with microbial control demands such as food & dairy, biopharmaceutical industries, and other critical hygiene-sensitive operations.
Design Advantages and Features
Sing-Tao® Diaphragm Valves’ core advantage lies in their stagnation-free or dead-leg-free valve body structure, enabling complete self-draining. Compatible with CIP (Clean-in-Place) and SIP (Sterilize-in-Place) processes, they ensure rapid evacuation of residual media to prevent microbial growth and impurity retention. Customizable multi-channel configurations achieve minimal dead legs while maximizing drainage efficiency and cleanability.
Features
● Designed for high-purity applications in food & beverage, pharmaceutical, and bioengineering industries.
● Core advantage: The diaphragm completely isolates the medium from actuation components, eliminating contamination risks.
● Medium-wetted materials are non-leaching, non-toxic, high-temperature resistant, and corrosion-resistant.
● Suitable for process pipelines requiring high sanitary standards.
● Compatible with solenoid valves or positioners for precise flow regulation capabilities.
| Dimension range: | DN10-DN100(3/8"-4") |
| Working temperature: | -10℃ -150℃ |
| Pressure rating: | 10bar |
| Drive mode: | Manual/pneumatic |
| Automatic control unit: | Feedback device and locating device |
| Diaphragm or sealing material: | PTFE&EPDM |
| Body material: | 316L/1.4404/1.4435 |
| Interface form: | Welding and clamping |
| Standard: | ASME BPE and 3A |

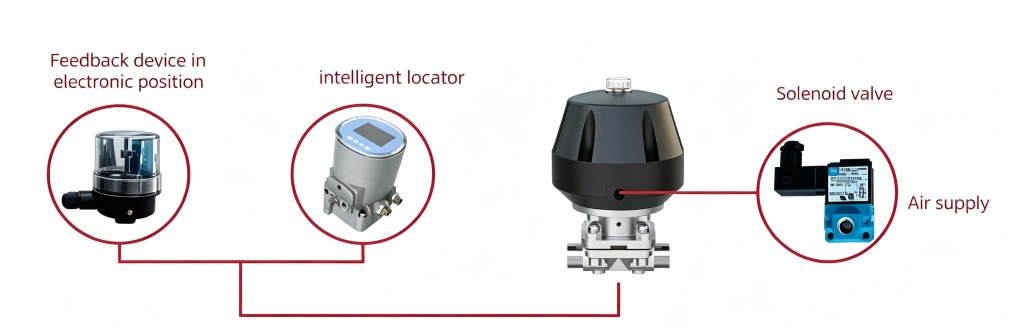

SingTao® diaphragm valve can be used directlywith the following accessories

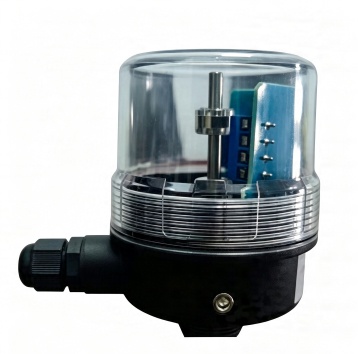

ST F1 FPos contact type position feedback device
● Operating ambient temperature：-10℃-80℃
● Degree of protection：IP66
● Visual：Green light indicates valve closing, red light indicates valve opening
● Electrical parameters：24V/DC, single circuit current Max: 400mA
● Multi-mode：
1.Three-wire double feedback (light on)
2. Four-wire double feedback (light on)

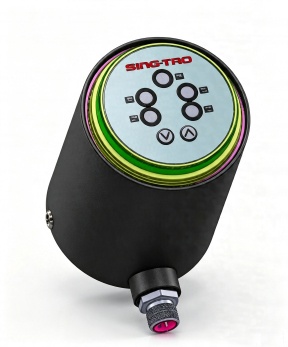

ST F2 FPos Intelligent Inductive Position Feedback Device
● Visual inspection：Green light on (valve open), yellow light on (valve closed), red light on (fault)
● Switch type：Electronic position sensing
● Connection form：Cable sealing joint
● Features：Easier connection, simple debugging and setting, compared to contact type, more shock-absorbing and shock-absorbing, with low failure rate
